In quality engineering, the Taguchi Loss Function holds significant importance as a key concept pioneered by Dr. Genichi Taguchi. Dr. Taguchi, a renowned Japanese engineer and statistician, was a firm believer in the idea that reducing variation in product quality is essential for achieving consistent, high-quality performance.

Dr. Taguchi's primary objective was to shift the focus from merely meeting specifications to actively minimizing variation. This approach encourages manufacturers to strive for continuous improvement and deliver consistently high-quality products that meet customer expectations. By emphasizing the minimization of variation, the Taguchi Loss Function helps drive the development of robust designs and improved manufacturing processes, ultimately leading to better customer satisfaction and reduced costs for manufacturers.

## Taguchi Loss Function

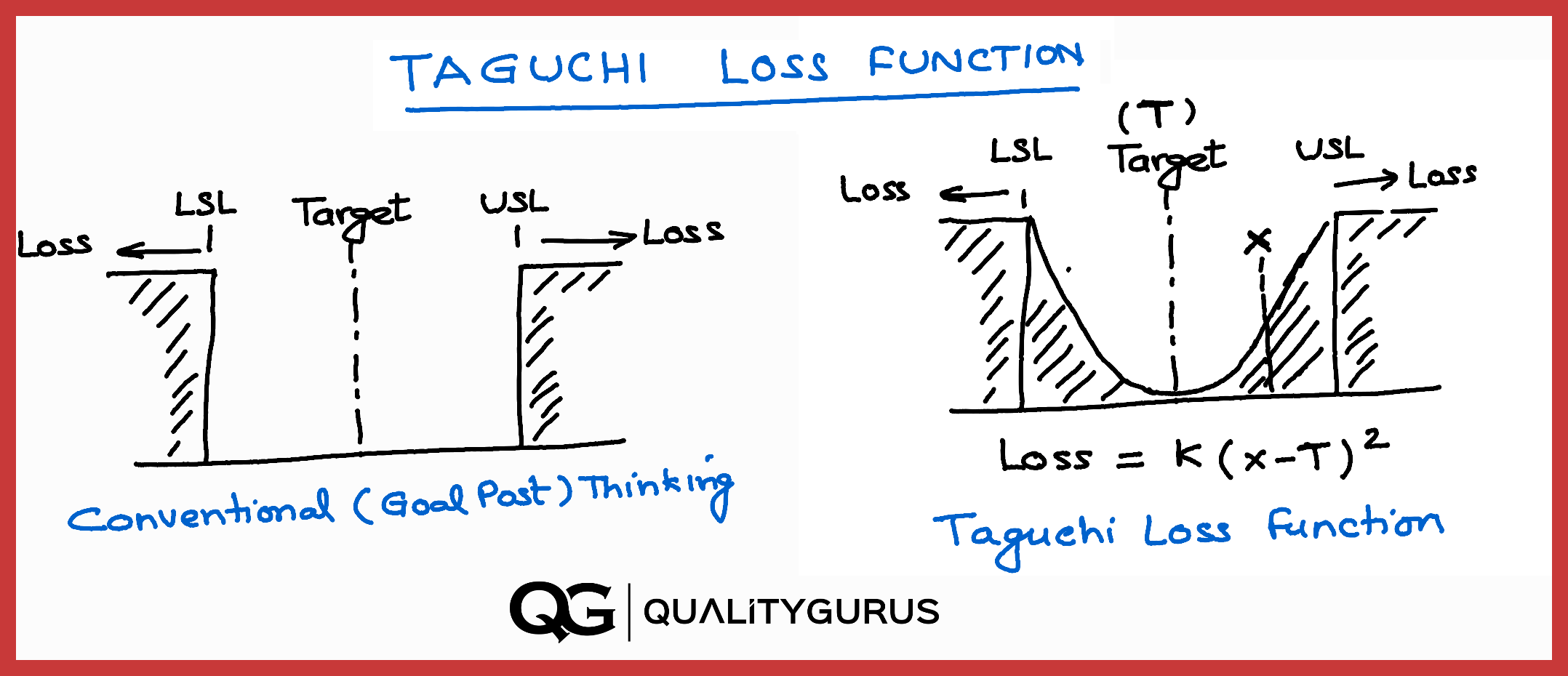

The Taguchi Loss Function (or Quality Loss Function) is a mathematical representation that quantifies the relationship between product quality and the financial loss (loss to society) associated with deviations from a target value. The Taguchi Loss Function is an equation used to quantify the financial loss incurred due to deviations in product quality from the target value. It is based on the principle that any deviation from the ideal or target value increases costs associated with poor quality, customer dissatisfaction, or product failures.

The Taguchi Loss Function equation is:

L(x) = K * (x - T)^2

Where:

• L(x) represents the financial loss associated with a specific deviation from the target value.
• K is the loss coefficient, a constant that determines the rate at which financial loss increases with deviations from the target value.
• x is the actual value of the quality characteristic being evaluated.
• T is the target value, the ideal or optimal value of the quality characteristic.

The equation is quadratic in nature, indicating that the financial loss increases exponentially as the deviation from the target value grows. This means that even small deviations from the target can result in significant financial losses, emphasizing the importance of maintaining high-quality products that meet customer expectations.

## Example Calculation:

Suppose a company manufactures widgets, and the target weight for these widgets is 500 grams (T = 500). The company has a tolerance range of ±10 grams, meaning any widget with a weight between 490 and 510 grams is considered acceptable. Widgets outside this specification limit (acceptable limits) are rejected, costing the company \$50 per rejected widget.

First, we need to calculate the loss coefficient (K) value using the provided information. We know the loss is \$50 when the deviation from the target weight is 10 grams.

L(x) = K * (x - T)^2
\$50 = K * (10)^2

Solving for K:

K = \$50 / (10)^2
K = \$50 / 100
K = \$0.50

Now that we have the value of K, let's calculate the financial loss (L(x)) for a widget with a weight of 509 grams (x = 509). Please note that this piece is within the acceptable tolerance range. Conventionally we would not consider any loss (quality cost) in this case.

Using the Taguchi Loss Function equation:

L(x) = K * (x - T)^2

Plugging in the values:

L(509) = 0.50 * (509 - 500)^2
L(509) = 0.50 * (9)^2
L(509) = 0.50 * 81
L(509) = \$40.50

According to the Taguchi Loss Function, the financial loss associated with producing a widget with a weight of 509 grams is \$40.50. This calculation helps the company understand the cost implications of deviations from the target weight.

Taguchi Loss Function Calculator

``` function calculateTaguchiLoss() { const y = parseFloat(document.getElementById('actualValue').value); const T = parseFloat(document.getElementById('targetValue').value); const L = parseFloat(document.getElementById('specLimit').value); const C = parseFloat(document.getElementById('rejectionCost').value); const resultContainer = document.getElementById('result'); if (isNaN(y) || isNaN(T) || isNaN(L) || isNaN(C)) { resultContainer.innerHTML = "Please fill all fields correctly."; return; } const k = C / Math.pow(L - T, 2); let loss = k * Math.pow(y - T, 2); // Limiting the Taguchi loss to the rejection cost if it exceeds it loss = Math.min(loss, C); resultContainer.innerHTML = `Taguchi Loss: \${loss.toFixed(4)}`; } ```

## Conclusion

In summary, the Taguchi Loss Function is a critical concept in quality engineering that highlights the importance of minimizing variation in product quality. Developed by Dr. Genichi Taguchi, it provides a valuable framework for understanding the relationship between product quality and financial loss, enabling companies to make informed decisions about product design, manufacturing processes, and continuous improvement efforts.
