Fault Tree Analysis (FTA) is a method for identifying potential failure modes in systems or processes. The goal is to identify the conditions under which failures might occur and then design countermeasures to prevent them.

FTA is a graphical method for analyzing system-wide failure modes. It uses boolean logic (AND/OR) to combine a series of low-order components into a single high-order failure mode.

FTA helps us to analyze our projects and see where they might fail. This way, we can take steps to mitigate those risks before they happen.

## Logic Gates

A fault tree is a diagram showing the possible causes of a problem and the likelihood of each cause occurring. There are two most commonly used logic gates in the fault tree analysis: AND Gate and OR Gate.

In the OR gate, the output is true if at least one of the inputs is true. Whereas in the AND gate, the output is only true if all of the inputs are true.

# OR Gate

- Output occurs if any inputs occur.
- If all of the inputs fail, the system fail.

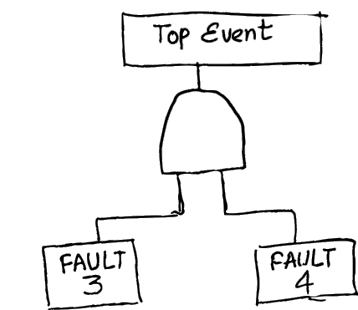

# AND Gate

- Output occurs if all inputs occur.
- If any of the inputs fail, the system fail.

You can think of a fault tree as a kind of decision tree.

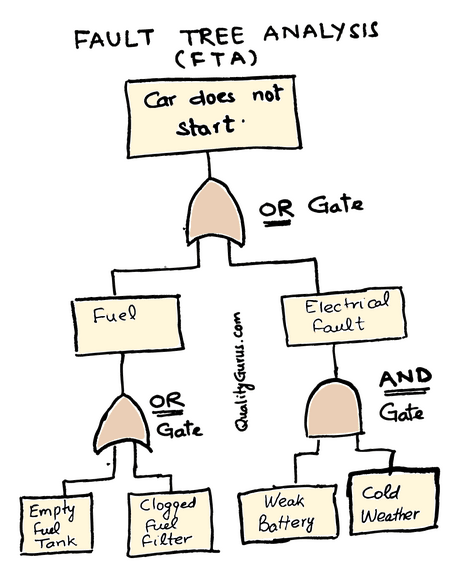

An example of using FTA for the car not working is shown here.

## Application of Fault Tree Analysis (FTA)

The following are some of the most common uses of fault tree analysis:

1. Identify potential failure modes: If you want to know what could go wrong with a complex system.

2. Assess risk: You can also use FTA to determine if there are any synergistic effects between different failure modes.

3. Design mitigation strategies: Once you've determined the likelihood of various failure modes, you can decide on appropriate mitigations. For example, you may decide to add redundancy to certain components or change the order in which things are done.

4. Evaluate new designs: When designing something new, you'll often need to do an FTA analysis to ensure that you haven't missed anything important.

5. Improve existing designs: Sometimes, when improving existing designs, you'll find that you need to make changes to the underlying structure of the design. This will require you to perform an FTA analysis to ensure you haven't missed anything.

6. Increase reliability: FTA allows you to increase reliability by reducing the number of possible failure modes.

## Conclusion

Fault trees are useful tools for evaluating and understanding the probability of failure in complex systems. They allow you to visualize the interdependencies among multiple factors and their impact on overall system performance.
